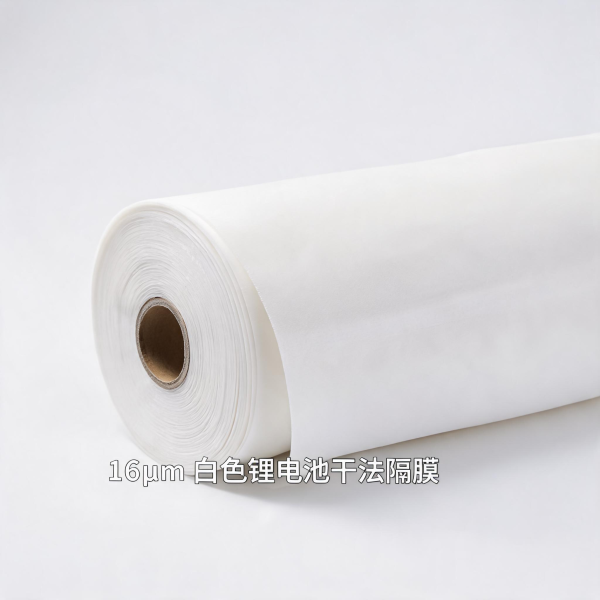

Dry Process Separator 16μm

Product Overview

Huizhou BestGemo New Energy offers the Dry Process Lithium Battery Separator in a 16μm thickness variant, a polypropylene (PP) based membrane engineered for modern power and energy-storage lithium batteries. This separator is manufactured using a dry-process method, which provides a balanced combination of mechanical integrity and thermal performance. As a core component within the battery cell, its role is to prevent electrical short circuits between the anode and cathode while permitting efficient ionic transport, directly influencing cell safety and cycle life.

The 16μm thickness configuration is specifically designed to support higher energy density cell architectures while maintaining reliable thermal and mechanical performance. This thinner profile reduces internal resistance and contributes to improved rate capability, making it well-suited for applications where compact cell design and efficient ionic transport are priorities. Our dry-process separator is engineered to meet the operational demands of lithium iron phosphate (LFP) chemistries, which are prevalent in electric vehicles and stationary energy storage systems. The material's inherent thermal resistance, with a rated tolerance of ≥150°C, contributes to a wider safe operating window for the battery. The controlled thickness allows battery manufacturers to fine-tune energy density and mechanical strength according to their specific cell design requirements, making this separator a reliable and practical choice for high-volume production environments.

Key Features

• Thermal Resistance (≥150°C): The PP base material provides a high melting point, helping to maintain separator integrity and reduce the risk of thermal runaway in elevated temperature conditions.
• Controlled Porosity (35% ~ 45%): This carefully maintained porosity range supports consistent ionic conductivity while retaining sufficient mechanical strength for electrode handling and cell assembly.
• 16μm Thickness Design: The thinner profile reduces ionic transport distance, contributing to lower internal resistance and improved rate performance in high-energy-density cells.
• Chemical Stability: Polypropylene offers good resistance to the electrolyte solvents and lithium salts used in common LFP battery formulations, promoting long-term performance stability.
• Cost-Effective Dry Process: The dry-stretch manufacturing method offers a favorable balance of performance and production cost efficiency, suitable for mainstream LFP applications.
• Uniform Material Structure: The dry-process yields a consistent pore structure, which contributes to more predictable wetting behavior and uniform current distribution across the electrode surface.

Technical Specifications

Applications

This 16μm dry-process separator is optimized for use in rechargeable lithium batteries that prioritize safety, longevity, and cost-effectiveness. Its material properties align well with the operational envelope of LFP cathodes, providing the necessary thermal stability for demanding charge-discharge cycles and high-capacity cells. The thinner profile makes it particularly suitable for cell designs targeting improved energy density without compromising safety margins.

• Electric vehicle (EV) power batteries, including passenger cars and commercial buses.
• Stationary energy storage systems (ESS) for grid peak shaving and renewable energy integration.
• Residential and commercial battery energy storage units requiring enhanced safety margins.
• High-capacity lithium battery cells designed for long-duration discharge and cycling.

Quality Assurance

• Strict and systematic quality management procedures are implemented at every stage of the production workflow, from raw material inspection to final packaging.
• Each batch undergoes a full inspection protocol prior to shipment to verify dimensional consistency, porosity levels, and absence of physical defects.
• We provide technical support to assist customers in evaluating the separator's performance within their specific battery architecture and testing protocols.
• Product samples are available upon request to facilitate pre-production validation and integration testing.

OEM/ODM Customization

We understand that different battery designs require specific separator characteristics. Our production line supports OEM and ODM collaborations where the separator thickness and roll dimensions can be adjusted to match your cell winding or stacking equipment. For the 16μm variant, we can also discuss custom roll widths, core sizes, and packaging configurations to seamlessly integrate with your manufacturing process. Please contact our engineering team with your target specifications to discuss how our dry-process separator can be tailored to your application requirements.
